Power System Studies

Detailed Engineering Studies For Arc Flash Risk Assessment

Data Collection

Don't have the details? Our Team will visit the site and do it for you.

Read More

Short Circuit Analysis

Short circuit studies will be conducted on the network to identify the front levels at each point in the system.

Read More

Relay Coordination

Protection coordination will be conducted to identify the tripping and optimal.

Read More

Equipment Evalution

System will be under equipment evaluation study and the failure connections will be determined.

Read More

Arc Flash Risk Assessment

Arc Flash study will be conducted and instant energy value will be calculated.

Read More

Printing & Pasting

Warning labels will be create as per NFPA 70E and will be printing & pasting on the respective panels.

Read More

We provide Trunkey Solutions

  • Data Collection
  • Networking Building
  • Load Studies
  • Short Circuit Studies
  • Relay Coordination Study
  • Arc Flash Study
  • Arc Flash Warning Label

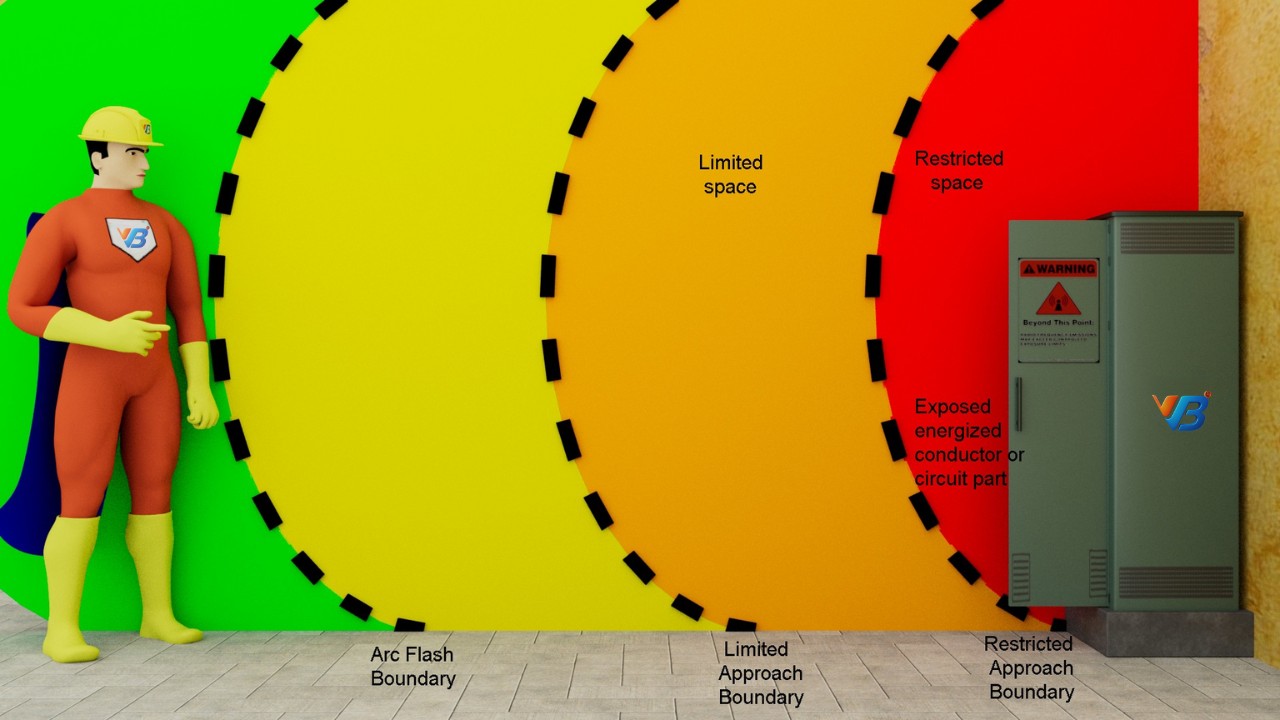

  • Arc Flash boundaries & marks
  • Energized Work Permit
  • Arc Flash PPE supply

The Process We Follow

What is Arc Flash Study?

what is arc flash analysis? is the first question that raises in every safety concerns mind. Arc flash analysis is a combination of electrical study with ref to the safety guidelines. Arc flash hazard study also known as arc flash risk assessment is performed to identify and mitigate the arc flash hazards or arc flash risks available in the system and ensure the safety of the working personnel with proper arc flash safety procedure.

Arc flash policy for study demands that arc flash survey needs to be carried out before building the real time model for arc flash assessment. Arc flash assessment requirements are clearly mentioned in NFPA 70e all hazard flash safety guidelines including arc flash distance, arc flash PPE need to be mentioned in the arc flash warning labels. arc flash procedures need to be clearly defined and the working personnel shall be trained on arc flash policy and what is the danger of arc flash and shall be clearly instructed on the usage of arc flash PPE.


What are the Arc flash hazard assessment requirements?

The next question that triggers is What are the arc flash hazard assessment requirements, and do we have any arc flash safety program template for reference for understanding Arc flash hazard study and its related standards.

OSHA and NFPA has all the guidelines required for arc flash survey requirements and the arc flash warning labels preparation. We also need to keep in mind that arc flash hazard analysis is not just an electrical hazard analysis it also involves the other hazards like fire, smoke etc. So with ref to the study the working personnel has to wear the arc flash ppe which is tested. Arc flash testing has to be done all the arc flash ppe to ensure the quality and safety of the team.


Whom to choose for Arc Flash Study?

Then the biggest challenge comes whom to choose for arc flash analysis services and how to identify the best among arc flash study companies in the globe.

You are at the correct place at correct time. VB Engineering has vast and wide experience in providing the arc flash study services and its global presence will enable you with a great comfort.

Our arc flash assessment Procedure as follows: We do a thorough arc flash study for each and every facility considering various important factors mentioned in NFPA 70E for arc flash safety program.


Our methodology

VB Engineering is pioneer in providing comprehensive arc flash hazard assessment and tops the arc flash analysis companies with its international standards.

Our arc flash study data collection team will visit your facility with prior intimation. To run a flash hazard analysis you need all the installation data and all the details of the equipment with settings in place. The required arc flash evaluation data will be collected by our team at site.

We then build the models and We use multiple methods including SKM Power Tools, EasyPower, Etap, Neplan, Cymdist, EDSA, ArcPro, or IEEE 1584 depending upon the customer's needs. Our expertise in arc flash studies is widely recognized in the arc flash testing requirements industry and our flash hazard analysis engineers are members of IEEE, NFPA and IEC which set the standards for arc flash hazard analysis and mitigation.


How much Arc Flash Study cost?

Arc flash analysis cost is not an expense its and investment that will return you and your people a better safety by implementing proper arc flash policy. Arc flash study cost depends on various factors like size of the system, location, equipment complexity and other factors.

Arc analysis is not everyone’s job. So choose your partner wisely and ensure you choose the best one for your arc flash analysis requirements.

We perform a thorough shock hazard analysis and arc flash coordination study with ref to the protection provided in the system and detailed arc flash study report consisting of arc flash warning labels and energised work permits required will be created as per NFPA standards.

Need more information?

Talk to our team today.Fill the enquiry and get your free arc flash study quote today.
